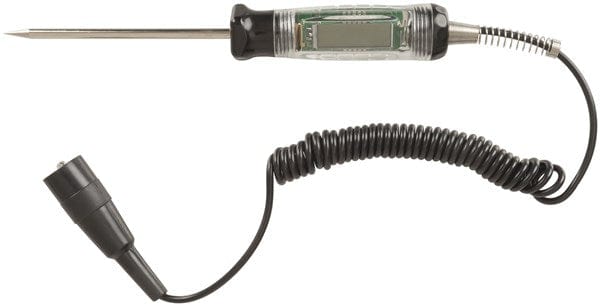

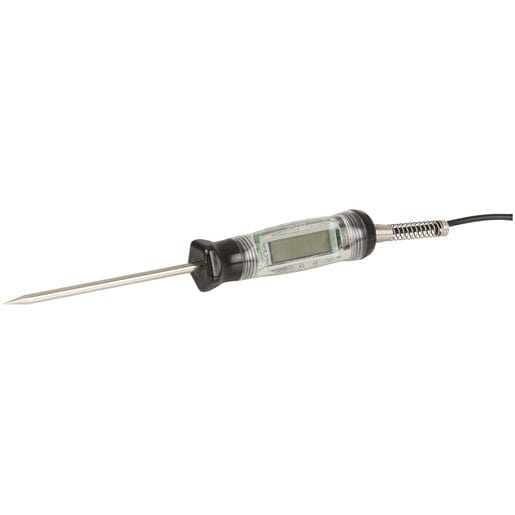

Provides useful debugging and testing in many systems, most notably vehicles, boats, motorbikes, and other 6-24V systems. It provides an accurate voltage readout as well as polarity check. It’s a more advanced version of a test-lamp used for decades in the automotive industry. Self powered from the test circuit.
Features:
- Tests powered-on circuits
- Works on 6V, 12V, and 24V systems
- Stainless steel testing probe
- LED Indicators: Green (-), Red (+)
- Operating Current: 12VDC < 70mA
Measures Voltage DC
DC Volts Measurement Range
|
3V-30V |
DC Voltage Accuracy
|
0.3V digits |
Product Dimensions
Diameter
|
30mm |
Cable length
|
50mm |
Width
|
228mm |
Weight
|
125g |
