3A PWM Solar Charge Controller 12V

$34.90

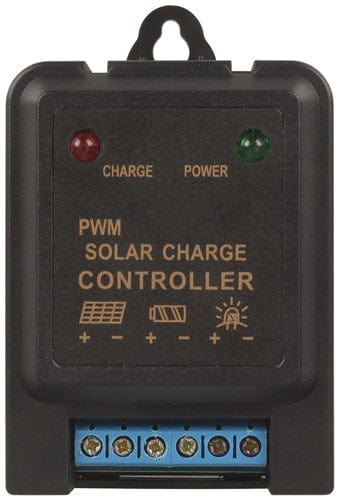

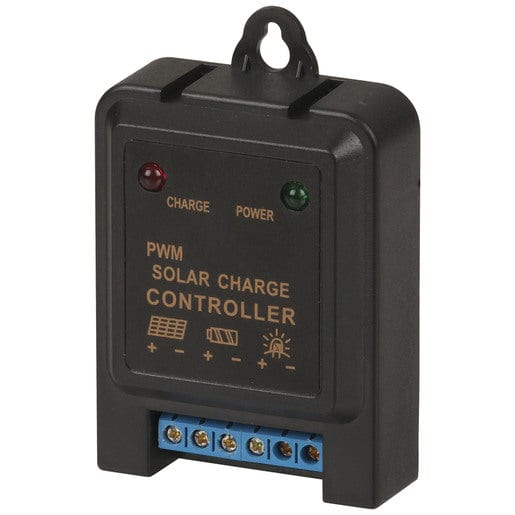

This compact solar controller uses Pulse Width Modulation (PWM) to manage battery charging from a connected solar panel. It features light and timer control, similar to street lights, and three charging states (bulk, equalise, and float charging). It provides all the important safety features such as overcharge, over-discharge, over-current, short-circuit, and reverse-polarity protection.

Features:
- Red charge LED indicator
- Green power LED indicator
- Hang hook
- Battery voltage automatic identification
- PWM charging mode
- Comprehensive electronic protection

Specifications:
Rated Voltage: 12V
Strong Charging Pressure: 14.8V
Equilibrium Charging: 14.5V
Float Charging Pressure: 13.7V
Under Voltage: 10.8V
Under Recover Voltage: 13V
Non–Load Current: ≤6mA
Charging Circuit Voltage drop: ≤0.2V
Discharge Circuit Voltage drop: ≤0.1V

Solar Charge Controllers and Regulators

Max Load Current
3A
Max Charging Current
3A
Charge Controller Technology
Pulse Width Modulated (PWM)

DC Voltage Rating

DC Voltage
12V

Ingress Protection Rating

Dust/Particle Ingress Protection
2 - Objects > 12.5mm, Fingers or small objects
Liquid/Moisture Ingress Protection
2 - Dripping water when tilted to 15deg
IP Rating
22

Product Dimensions

Width
52mm
Height
22mm
Depth
80mm
Weight
33g


Warranty:
 12 Months
