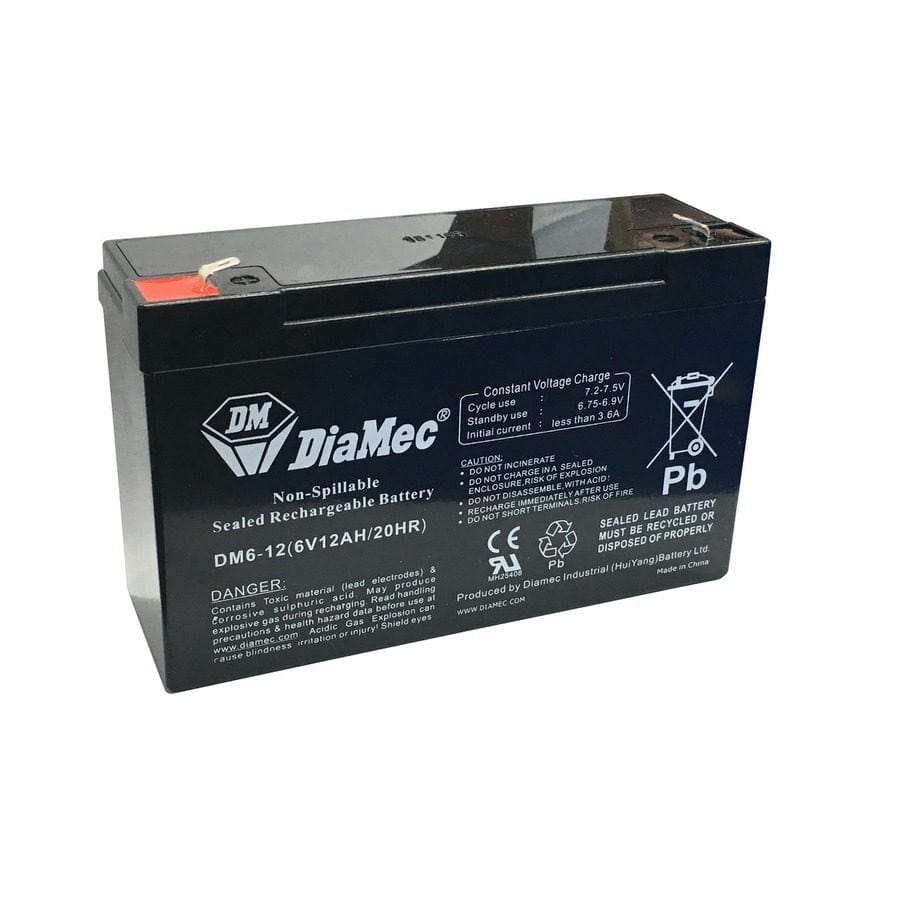

These versatile 6V Sealed Lead Acid batteries have a huge range of uses and are found in everything from kids toys cars to PA Systems, emergency lights to medical devices.
Tech Specs:
Initial Charge current: Less than 3.6A at 7.2V~7.5V @ 25degC
Discharge current: 20 hr rate 600mA (12.0Ah)
Max Discharge Current (5 sec): 180A
Weight: 1.90kg
Battery Charging
Recharging Voltage
|
7.2V-7.5V |
Standard Recharge Current
|
1.2A |
Recharging Time
|
12hr |
DC Voltage Rating
Product Dimensions
Depth
|
51mm |
Length
|
151mm |
Height
|
100mm |
Packaged Dimensions
Packaged Volume
|
1.09312l |
Packaged Weight
|
1.694kg |
Packaged Length
|
16cm |
Packaged Width
|
6.1cm |
Packaged Height
|
11.2cm |
Batteries and Battery Packs
20 Hour Capacity
|
12Ah |
10 Hour Capacity
|
10.8Ah |
5 Hour Capacity
|
9.6Ah |
1 Hour Capacity
|
7.2Ah |
Internal Resistance
|
10Ω |
Amp Hour Rating
|
12Ah |
Connection Type
|
Spade Terminals |
Type of battery
|
SLA Block |
Battery Chemical Composition
|
Sealed Lead Acid (SLA) |
Battery usage
|
Rechargeable |
Battery Peak Current
|
180A |
