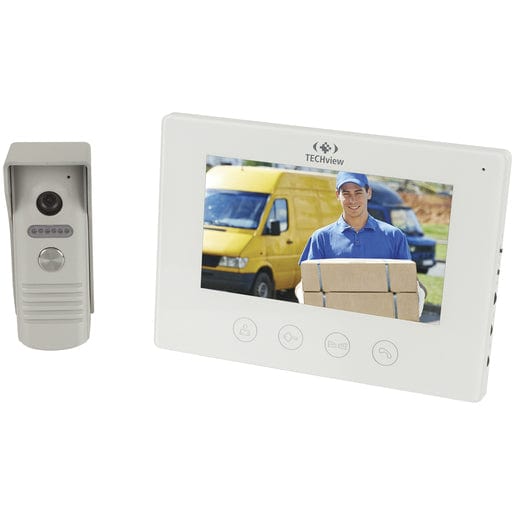

7 inch LCD Wired Video Doorphone

$299.00 $329.00
Find out who’s knocking before you open the door! The fantastic resolution from the camera and monitor puts the power at your fingertips, providing you with clear vision to identify visitors. Even at night, the night vision LEDs will help provide a clear picture regardless of ambient light. The camera is mounted into a strong, weatherproof alloy metal housing, for protection against damage. The monitor is a sleek wall-mounted light-touch button interface with a full colour 7” screen. The system provides electronic door strike and gate control, as well as full talk-back to the outdoor unit. There is also a selection of 16 melodies to choose from when a visitor comes calling. Includes 20m of cable between the indoor and outdoor unit, but can be extended up to around 100m.

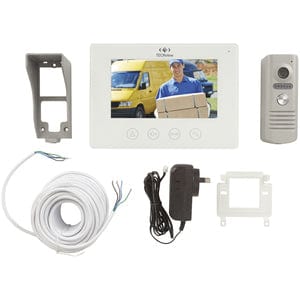

Box Contents:
1 x 7” LCD Monitor
1 x Doorphone Camera
1 x 20m Video & Power Cable
1 x Monitor Mounting Bracket
1 x Camera Mounting Bracket
1 x Mains Power Adaptor
1 x Mounting Hardware

Features:
. Electronic Door Strike & Gate Unlock
. Adjustable Brightness & Contrast

Monitor:
-LCD: 7” Touch Button
-Power Consumption: 580mA (Max)

Doorphone Camera:
-Image Sensor: 1/4” CMOS
-Lens: 3.6mm
-Lens Angle: 46°
-Dimensions: 127(H) x 47(W) x 33(D)mm (Excluding Bracket)

Display Screen

Touch Screen
YES
Screen Type
Flat Panel Screen (LCD)
Screen Width
215mm
Screen Height
152mm

Power from Plugpack

Suitable PSU Included
YES
DC Plugpack Voltage
12V
DC Current Draw
1.1A
PSU Powers
Display Screen

Mains PSU Included with Product

Mains Connection Type
Mains AU/NZ 3 Pin
Included PSU Rated for AU Mains
YES

Doorphones

Extra Monitor
YES
Two Way Talk Function
YES
Chime Functions
16
Adjustable Chime Volume
YES
Door Latch Control
YES

Surveillance Equipment

Equipment Type
Video Doorphone

CCTV Cameras

Included Lead Length
20m
Type of Camera
Doorphone
In-built Microphone
YES
Infrared Enabled
YES
Lens Angle
46°
Vertical TV Lines
700TVL
Frame Rate
25fps
Infrared Range
1m
Number of LEDs
6pc
Horizontal Angle
46°

Ingress Protection Rating

IP Rating
44


Packaged Dimensions

Packaged Volume
4.20147l
Packaged Weight
1.546kg
Packaged Length
24.3cm
Packaged Width
19cm
Packaged Height
9.1cm
Warranty: 12 Months
