Hobbyist multimeters provide exceptional value for money, and good features for a range of applications.

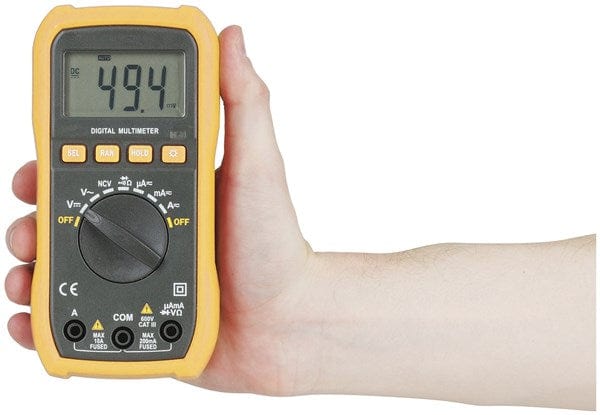

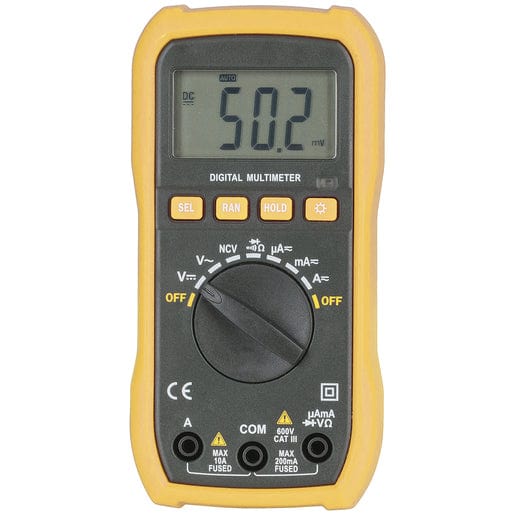

This practical multimeter measures both DC and AC voltages and currents. The default autoranging setting automatically selects the best range for your measurements. If a different range is preferred, simply switch it to manual. A built-in buzzer and LED warning light alert you to low resistance, detected voltage and live wires. In low light conditions you can activate the 10 second backlight to view measurements. Use the data hold button to lock them on screen for data capture and analysis.
Digital Multi-Meter
Count Maximum Reading
|
2000 count |
True RMS
|
NO
|
Autorange
|
YES
|
Optical Sensor
|
NO
|
Measures duty cycle
|
NO
|
Measures dwell
|
NO
|
Meter Safety Rating
Safety Rating Cat
|
Cat III |
Safety Rating Max Volt
|
600V |
Meter Data Control
Measures Voltage DC
DC Voltage Ranges
|
200mV, 2V, 20V, 600V |
DC Voltage Accuracy
|
±0.8% |
Measures Current DC
DC Current Ranges
|
200µA, 2mA, 20mA, 200mA, 10A |
DC Current Accuracy
|
±3% |
Measures Voltage AC
AC Voltage Ranges
|
200µV, 2mV, 20mV, 200V, 600V |
AC Voltage Accuracy
|
±1% |
Measures Current AC
AC Current Ranges
|
200µA, 2mA, 20mA, 200mA, 10A |
AC Current Accuracy
|
±3% |
Measures Continuity
Continuity indicator
|
On Panel |
Continuity buzzer
|
YES
|
Measures Resistance
Resistance Ranges
|
200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ |
Resistance Accuracy
|
±1.5% |
Meter Probes
Probe Type
|
High Grade Meter Probes |
Connection to meter
|
Shrouded 4mm Banana Plug |
Probe rating voltage
|
600V |
Probe safety rating
|
Cat II |
Meter
Meter Input Impedence
|
10MΩ |
Led Indicator Display
|
NO
|
Measures diode
|
YES
|
Measures transistor
|
NO
|
Input Protection Fuse
|
500mA, 10A |
Foldout Stand
|
YES
|
Casing
|
Plastic |
Carry Case Included
|
NO
|
Product Dimensions
Weight
|
200g |
Length
|
144mm |
Width
|
70mm |
Height
|
32mm |
Packaged Dimensions
Packaged Volume
|
2.05173l |
Packaged Weight
|
0.328kg |
Packaged Length
|
25.5cm |
Packaged Width
|
14.9cm |
Packaged Height
|
5.4cm |
Power from disposable battery
Size / Shape
|
AAA, AAA |
Battery quantity
|
2pc |
Batteries included
|
YES |
Batteries can be replaced by user
|
YES
|
Battery used for
|
Main Product |
Compartment location
|
Back |
How is battery compartment kept closed
|
Screw |
Power from disposable battery - Additional
Batteries can be replaced
|
YES
|
Size / Shape
|
AAA, AAA |
Meter Display
Display Type
|
LCD |
Display Backlight
|
LED Backlit |
