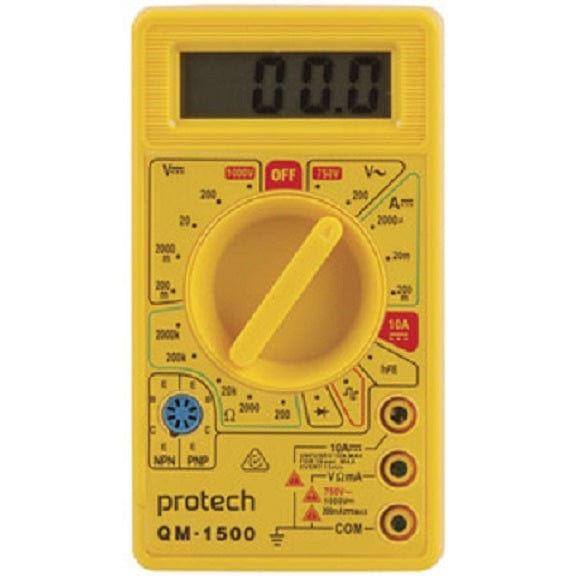

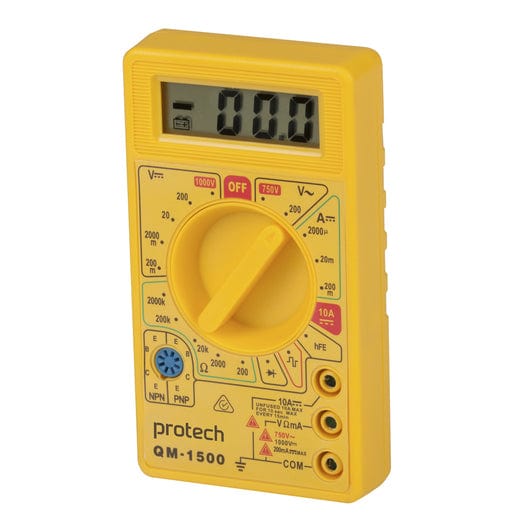

Digitech Low Cost Digital Multimeter (DMM)


Price:
Sale price$11.90

Description

This is the ideal first multimeter or a handy spare meter for your car or toolbox. Measures essential test ranges and includes plug-in 4mm probes plus transistor tester.

Measures Current DC
DC Current Ranges 200µA,2mA,20mA,200A,10A
DC Current Accuracy 20mA ±1 ±2 Digits,200mA ±1.2 ±2 Digits,10A ±2 ±2 Digits
Measures Voltage AC
AC Voltage Ranges 200V,750V
AC Voltage Accuracy ±1.2 ±10 Digits%
Measures Voltage DC
DC Voltage Ranges 200mV,2V,20V,200V,1000V
DC Voltage Accuracy 200V ±0.5 ±2 Digits,200V ±0.8 ±2 Digits
Meter Safety Rating
Safety Rating Cat Cat II
Safety Rating Max Volt 500V
Measures Resistance
Resistance Ranges 200Ω,2kΩ,20kΩ,200kΩ,2MΩ
Resistance Accuracy 200kΩ ±0.8 ±2 Digits%,200kΩ ±1 ±2 Digits%
Digital Multi-Meter
True RMS no
Count / Maximum Reading 1999 count
Autorange no
Meter Probes
Probe Type Basic Meter Probes
Connection to meter Shrouded 4mm Banana Plug
Includes finger guard yes
Meter
Measures diode yes

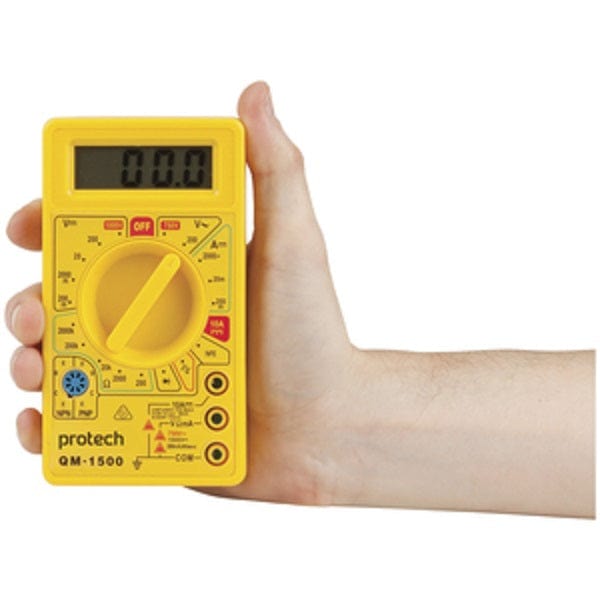

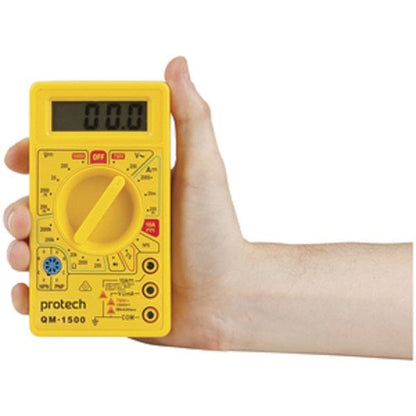

Special Features Pocket Sized
Measurement Range Count 19 count
Input Protection Fuse 500mA
Casing Plastic
Measures transistor yes
Led Indicator Display no
Inline Sensor no
Meter Input Impedence 1MΩ
Power from disposable battery
Compartment location Internal / In-built
How is battery compartment kept closed Clip and Screw
Size / Shape 9V
Battery quantity 1pc
Batteries included yes
Batteries can be replaced by user yes
Product Dimensions
Width 68mm
Height 125mm
Weight 150g
Depth 23mm
Meter Display
Digits Displayed 3.5 digit
Display Type LCD
Display Backlight Not Backlit
Display Height 30mm
Display Width 100mm
Bargraph no
Warranty: 24 Months
