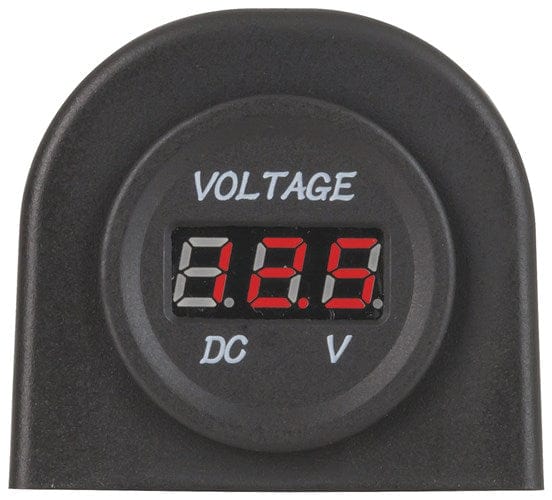

Quite possibly the easiest way to monitor your battery voltage, or the voltage in any DC powered system. Simply wire up to a positive and negative DC power source of 5-30VDC, and the voltmeter tells you the voltage (taking power from the DC source to operate).

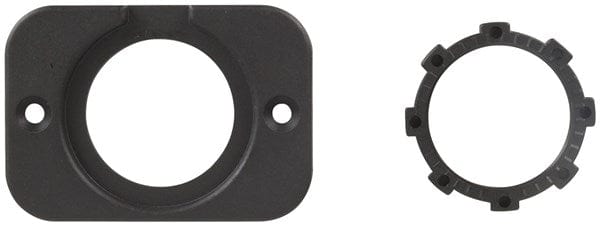

• Supplied with brackets for panel or surface mounting

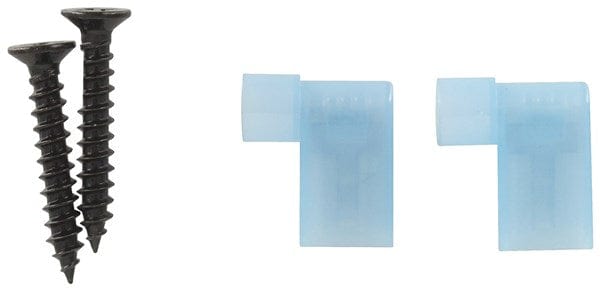

• Connection is via 6.3mm spade terminals
• Also available with additional modules
Measures Voltage DC
| DC Volts Measurement Range |
5V-30V |
Product Mounting
| Square Mount Hole Width |
60mm |
| Square Mount Hole Height |
42mm |
| Mounting Method |
Panel |
| Attachment / Securing Method |
Collar / Nut |
Product Dimensions
| Width |
60mm |
| Height |
42mm |
| Dimension details |
Panel Mounting |
| Dimensions for |
Including Bracket |
Internal or Sub-part Dimensions
| Dimension details |
Voltmeter module |
| Depth |
40mm |
| Dimensions for |
Without Bracket |
| Diameter |
36mm |
Additional Dimensions
| Width |
55mm |
| Height |
50mm |
| Depth |
80mm |
| Dimensions details |

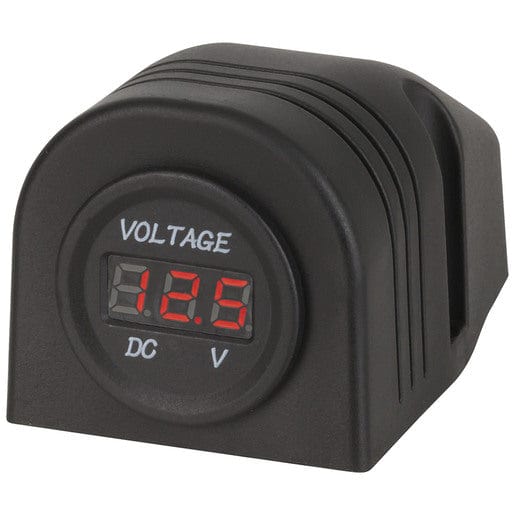

Under Dash / Surface Mounting Hood |
| Dimension for |
Including Bracket |
Meter Display
| Display Type |
LED |
| Display Backlight |
Red LED Backlit |
| Bargraph |
N |
| Display Height |
36mm |
| Display Width |
26mm |
