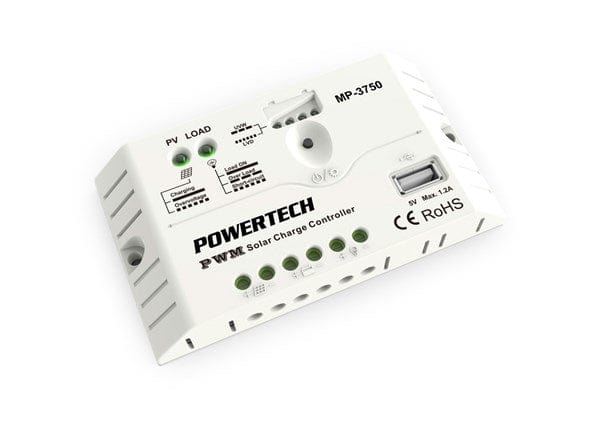

Intelligent yet lightweight, this solar controller uses Pulse Width Modulation (PWM) to control battery charging. With total autonomy, its set-and-forget operation means you can get maximum charge into your batteries from your solar installation without having to worry about those things. Suitable for solar panels up to 160W, it provides all the important safety features such as overload, short-circuit, over-discharge, and reverse-polarity protection. A handy feature is also the USB port located on the front panel, to provide up to 1.2A charging - very handy during power outages to keep your phone charged without any additional equipment. Charge modes include bulk, equalise, and float charging, and the unit automatically switches to the best charging mode. Suitable for sealed led acid, as well as Gel/flooded type cells.
Note: Solar panel nominal voltage must match battery voltage - eg. 12V solar panel on a 12V battery system.
Features:
- Automatic charge mode selection
- Suitable for 12V and 24V battery banks
- USB charging port on front panel
- Charging Modes: Bulk, Equalise, Float
- Supports: Sealed, Gel and Flooded
- USB Output: 5V @ 1.2A
- Terminals to suit cable up to 4mm2.
Solar Charge Controllers and Regulators
Max Solar Panel Array
|
120W-240W |
Max PV Open Circuit Voltage
|
50V |
Max Load Current
|
10A |
Max Charging Current
|
10A |
Charge Controller Technology
|
Pulse Width Modulated (PWM) |
DC Current Rating
DC Voltage Rating
Product Dimensions
Length
|
120mm |
Width
|
67mm |
Height
|
22mm |
Weight
|
100g |
Included USB Charge Output
Total Current Rating
|
1.2A |
Number of Ports
|
1pc |
Low Voltage Power / Vehicle Adaptors
Output Type
|
Screw Terminal |
Input Type
|
Screw Terminal |
Ingress Protection Rating
Dust/Particle Ingress Protection
|
2 - Objects > 12.5mm, Fingers or small objects |
Liquid/Moisture Ingress Protection
|
0 - Not protected |
IP Rating
|
IP20 |
Operating Temperature and Humidity
Operating Temperature
|
-35°C-55°C |
Warranty: 12 Months
