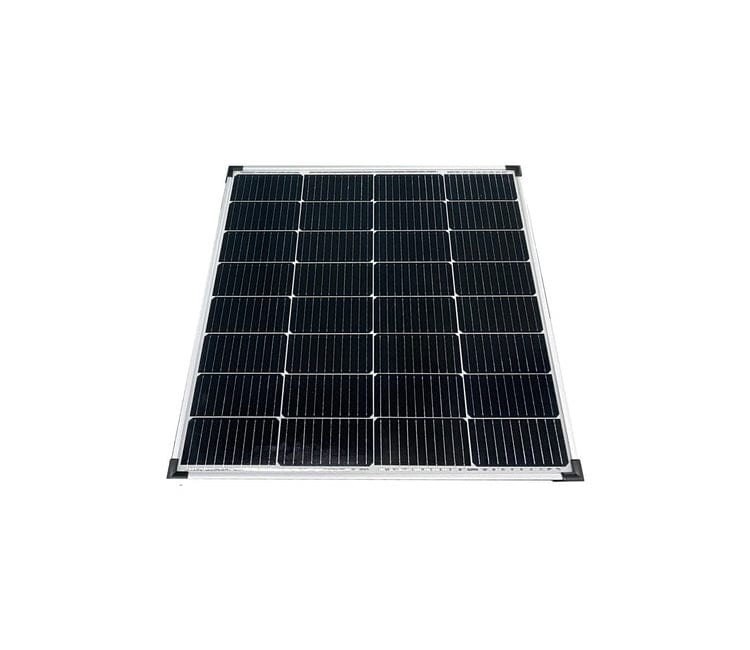

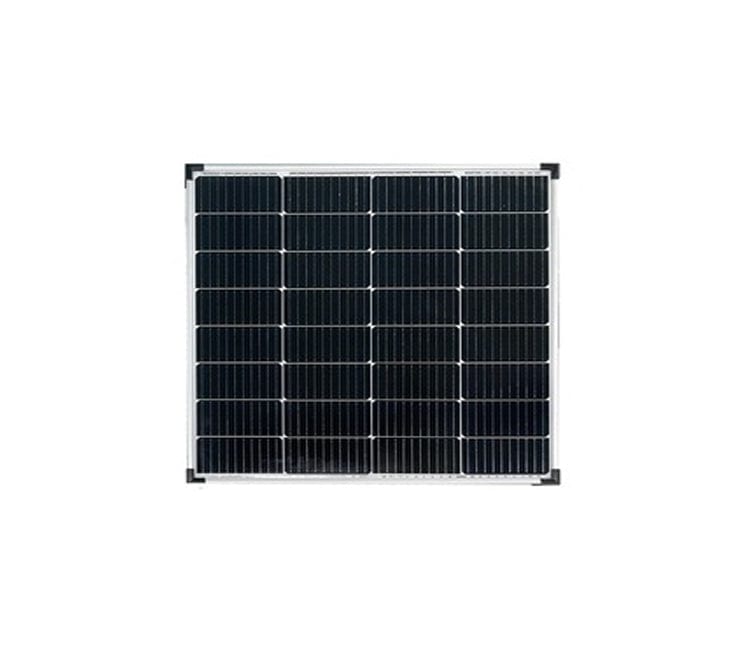

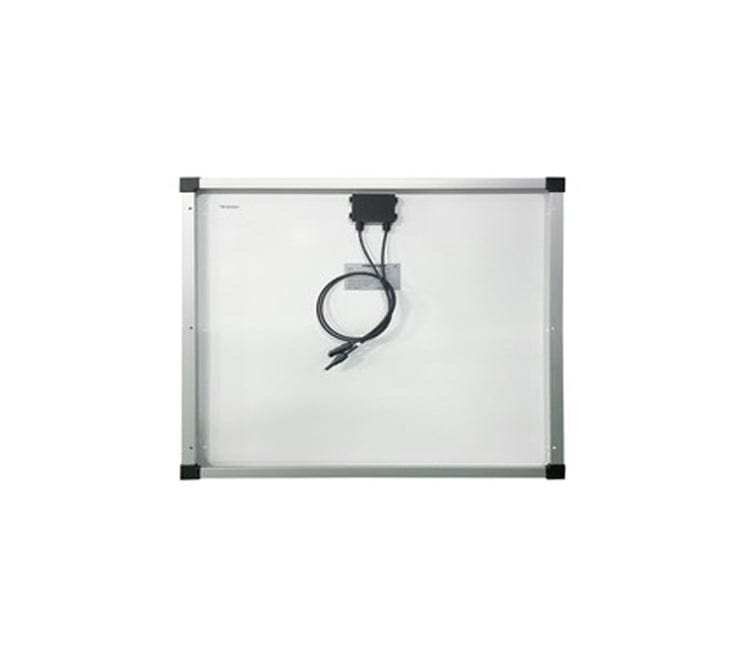

This high quality panel has much higher efficiency and power output compared to our previous models allowing the same power output in a more compact size. This is great for areas where you are limited for space and need as much power as you can get! Providing excellent performance under low light environments, they produce 2-3% more power and have a higher kWh/kW ratio compared to older monocrystalline designs. The durable anodised aluminium frame holds the tempered glass panel which features an anti-reflective and self-cleaning glass surface to reduce power loss from dirt and dust. The junction box and bypass diodes stop the panel from overheating and suffering from the “hot spot effect”. PV connectors on a 900mm lead make them easy to install. A fantastic panel with minimal ongoing maintenance and compatible with industry-standard inverters and mounting systems.
Solar Panel
Solar panel type
|
monocrystalline |
Cover Material
|
tempered glass |
Open Circuit Voltage
|
21.5V |
Short Circuit Current
|
7.75A |
Voltage at Power Max
|
18V |
Current at Power Max
|
7.22A |
Power Connector
|
4mm PV Connector (MC4 Style) |
DC Voltage Rating
Product Dimensions
Depth
|
35mm |
Cable length
|
0.9m |
Length
|
790mm |
Width
|
770mm |
Packaged Dimensions
Packaged Volume
|
83.59164l |
Packaged Weight
|
8.382kg |
Packaged Length
|
88.88cm |
Packaged Width
|
85.5cm |
Packaged Height
|
11cm |
Warranty: 60 Months
