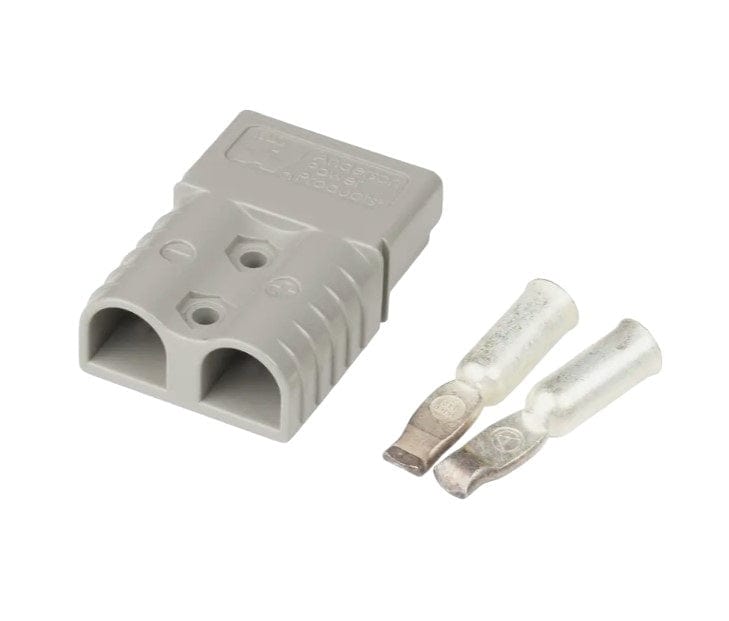

Anderson 120A Power Connector PT4422

Used widely in both domestic and industry, you'll find this connector in many 4WD applications, boating, automotive and other industries. Supplied individually with a pair of contacts.

Contact Wire Size: 33.6mm² (2 AWG)
Max Wire Insulation Diameter: 14.6mm
Contact Retention Force: 45.5kg (100lbs)
Operating Temperature: -20 to +125 degrees C

Operating Temperature : 125°C
DC Voltage : 600V
DC current rating : 120A
Pack Quantity : 1pc
Device : Plug
Plug or Socket Type : Anderson 120A 2 Pole
Contacts / Pins : 2pc
Attachment Method : Crimp
Case Material : Plastic
