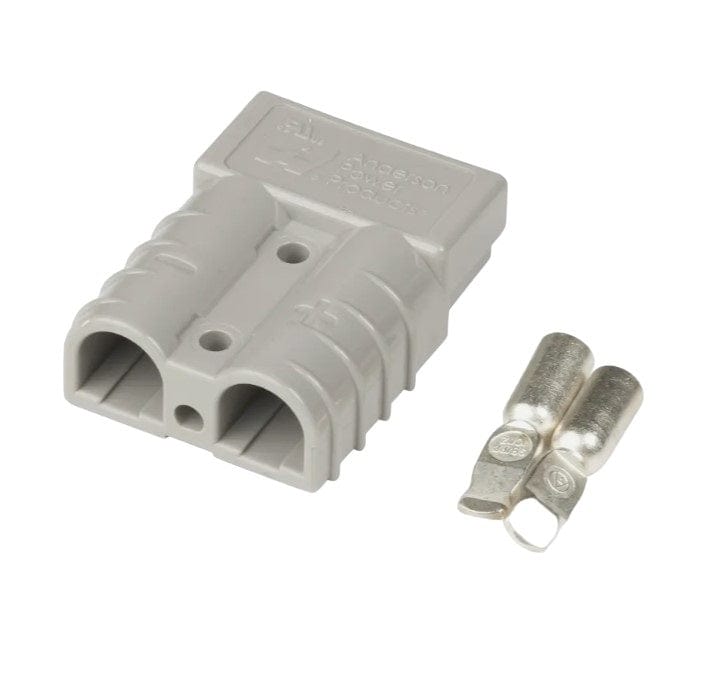

Used widely in both domestic and industry, you'll find this connector in many 4WD applications, boating, automotive and other industries. Supplied as a moulded 2 pole with contacts.
• Contact Wire Size: #12-10 AWG
• Max Wire Insulation Diameter: 11mm
• Contact Retention Force: 22kg
• Operating Temperature: -20 to +105 degrees C
Plug or Socket
Pack Quantity |
1pc |
Case Material |
Plastic |
Attachment Method |
Crimp |
Plug or Socket Type |
Anderson 50A 2 Pole |
Device |
Plug |
Contacts / Pins |
10pc |
DC Voltage Rating
DC Current Rating
Operating Temperature
Operating Temperature |
125°C |
