Digital Weather Station with Monochrome Display XC0432

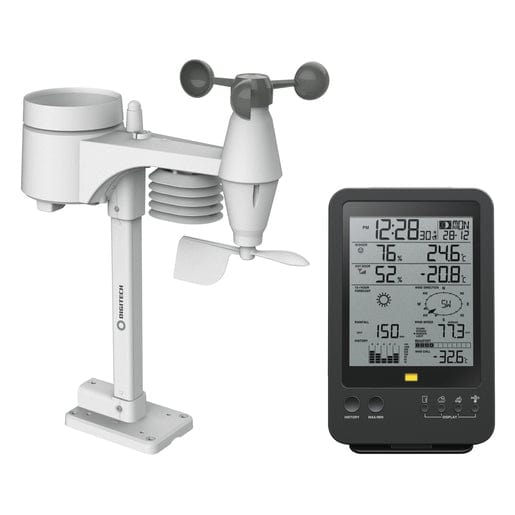

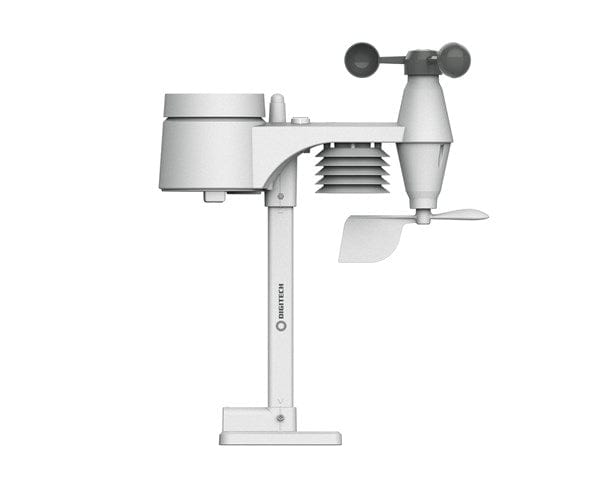

The wireless 5-in-1 sensor contains a self-emptying rain collector for measuring rainfall, anemometer, wind vane, temperature and humidity sensors. It is fully assembled and calibrated for easy installation. It sends data by a low power radio frequency signal (917MHz band) to the main display unit up to 150m away (line of sight).

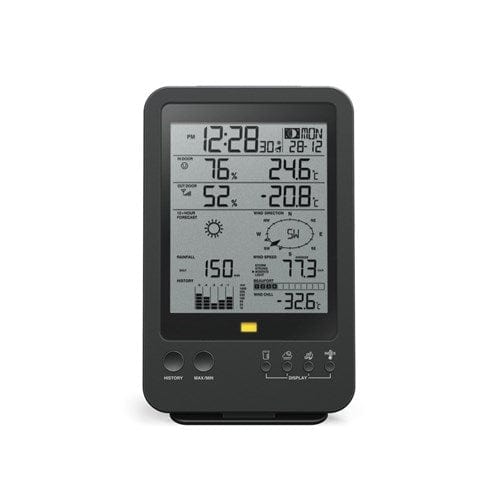

The main display shows all the weather data received from the 5-in-1 sensor outside. It remembers the data for a time range for you to monitor and analyse the weather status for the past 24 hours. It has advanced features such as the HI/LO Alert alarm which will alert the user when the set high or low weather criteria are met. The barometric pressure records are computed to give users forthcoming weather forecast and storm warning. Day and date stamps are also provided to the corresponding maximum and minimum records for each weather detail.

The system also analyses the rainfall rate, and shows daily, weekly and monthly records. Wind-speed is expressed in Beaufort Scale, and readings such as wind-chill, heat Index, dew point, and comfort level are also provided.

Features:
• Indoor & Outdoor Temperature (°C or °F)

• Min/Max Records

• Indoor & Outdoor Hygrometer

• Wind Speed  (m/s, km/h, mph, or knots)

• Wind Direction

• Wind Chill

• Dew Point

• Heat index

• Rain Gauge  (in or mm)

• Rain Rate

• Barometric Pressure (hPa, inHg, or mmHg)

• Moon Phase

• Time/Date Display

• High/Low Alarms

• 12 Hour Forecast

• Rainfall & Barometer Histogram

Dimension details
Width	120mm
Height	190mm

Width	120mm
Height	190mm
Depth	22mm
Dimensions details

Width	120mm
Height	190mm
Depth	22mm
Weight	370g

Weather Station Style	Weather Station
Sensor Type	Remote wireless sensor, Rocker Collector (Continuous Flow)
Sensor Battery Size	AA
Sensor Battery Quantity	3pc
Sensor Battery Type	Alkaline

Outdoor / Exterior Scale

-40°C-65°C

RH Humidity measure accuracy +/-	5%
Relative humidity range	20%-90%

Wind Speed Range

0km/h-180km/h

Sensor Type	Remote wireless sensor, Rocker Collector (Continuous Flow)
Maximum Rainfall Reading	9mm

Pressure Range

54kPa-110kPa

Display Type	LCD
Display Backlight	LED Backlit
Display Height	165mm
Display Width	90mm
Display colour	Monochrome

Battery used for	Transmitter
Size / Shape	AA
Battery quantity	3pc

Transmission frequency	917MHz
Transmission range	150m
Transmission power	917W
