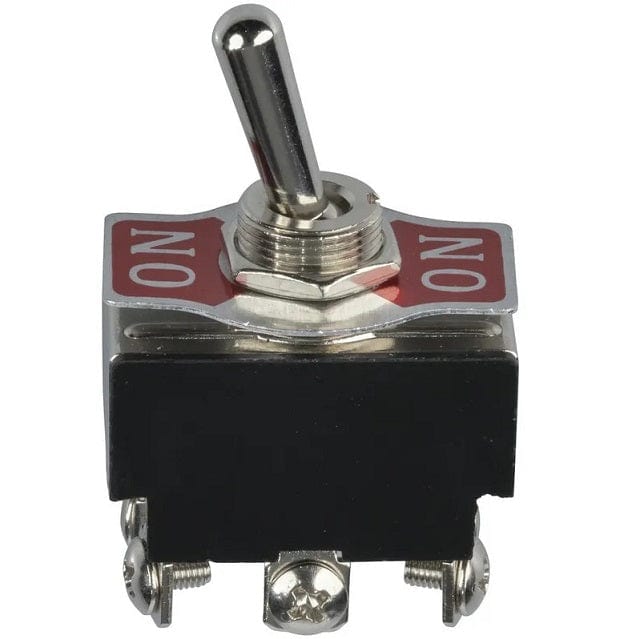

Rated at 6A 250VAC, this switch will handle mains power switching.
DPDT with screw terminals for cable - no soldering!
12mm mounting hole
Specifications:
AC Voltage rating : 250V
AC current rating : 10A
Switch Type : Toggle
Poles / Contacts : 2 pole
Throws / Positions : 1pos
Cycle Life : 40000 cycles
Contact Resistance : 10mΩ
Insulation Resistance : 1000mΩ
Dielectric Strength : 1000V
Switch Connection : Screw Terminal
Actuator Length : 18.5mm
Actuator Width : 19mm
