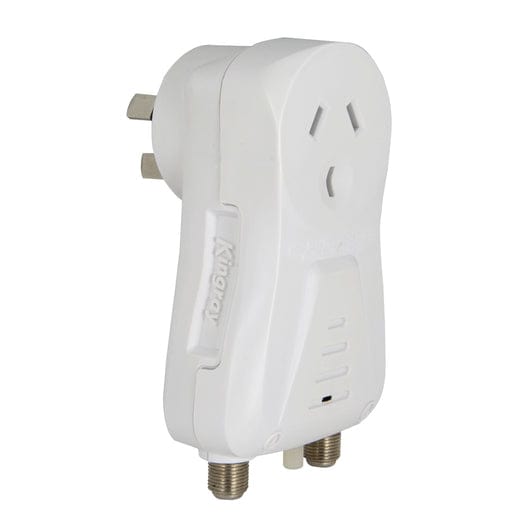

Such a simple and neat solution to boosting your TV antenna signals. The unit simply plugs into a mains outlet, and boosts your TV antenna signals through the F-type input and output sockets. There is also a mains output socket on the front so that you don’t lose any power points behind your TV unit. Up to 20dB of amplification is provided, with a variable gain control.
Antenna Amplifier
Usage Location
|
Indoor |
UHF Gain Control
|
10dB |
VHF Gain Control
|
15dB |
Amplifier Type
|
Indoor Booster |
Number of Inputs
|
1 ports |
Input Connection
|
F Type |
Number of Outputs
|
1 ports |
Output Connection
|
F Type |
UHF Gain
|
20dB |
UHF Frequency Range
|
46MHz-860MHz |
UHF Noise Figure
|
3.5dB |
Product Dimensions
Length
|
96mm |
Width
|
60mm |
Depth
|
40mm |
