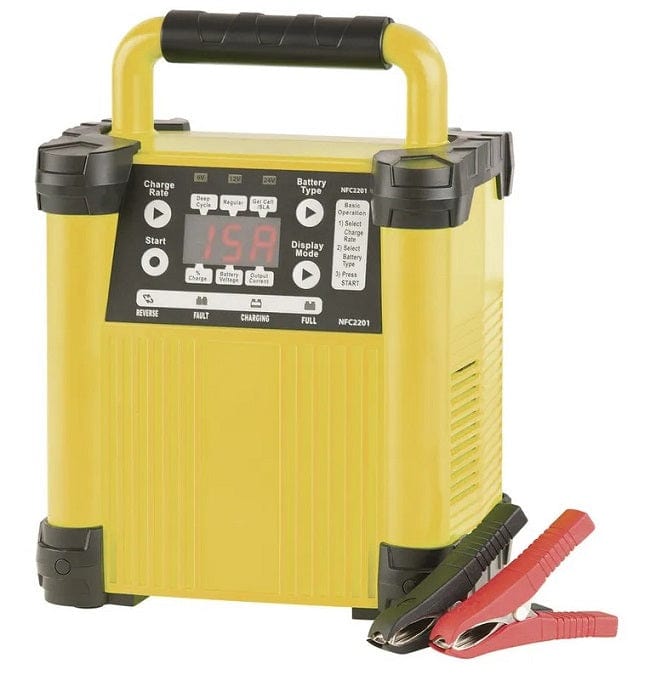

An intelligent battery charger suitable for flooded and gel lead acid batteries including deep cycle batteries at 6V, 12V or 24V. The microprocessor controlled unit provides 4 stages of charging, Soft Start, Bulk Charge, Absorption and Float which assists in the batteries life expectancy and performance.
An auto detection feature provides a user friendly experience, which can be pre-programmed or manually set for greater control. Should a blackout occur or AC input power be lost during a charging operation the memory function will resume charging once power is re-established.
Other features include temperature/voltage compensation, reverse polarity/short circuit protection and a battery status indicator. Ideal for cars, motorcycles, caravans and boats with battery capacities between 20-200Ah. It's also ultra-portable with a handy storage pocket in the back for the leads.
Features:
Memory function
Temperature controlled fan
LED battery status display
Temperature and voltage compensation
Input: 220 - 240VAC, 300W
Output:
15A @ 12V
7A @12V/24V
2A @ 6V/12V/24V
Protection:
Anti spark
Short circuit
Reverse polarity
Over heating/current/voltage
NOTE: These chargers are not recommended for long-term "maintenance" charging of unsealed lead-acid batteries, the types with removable filler caps and liquid elctrolyte.
Specifications:
Width : 170mm, Height : 230mm, Depth : 140mm
Rated for AU Mains : True
AC Plugpack Voltage : 240V
Charger Output Voltage : 6V, 12V, 24V
Charger Output Current : 2A
Controller Type : PWM
Connection Type : Alligator Clips
Reverse Polarity Protection : True
