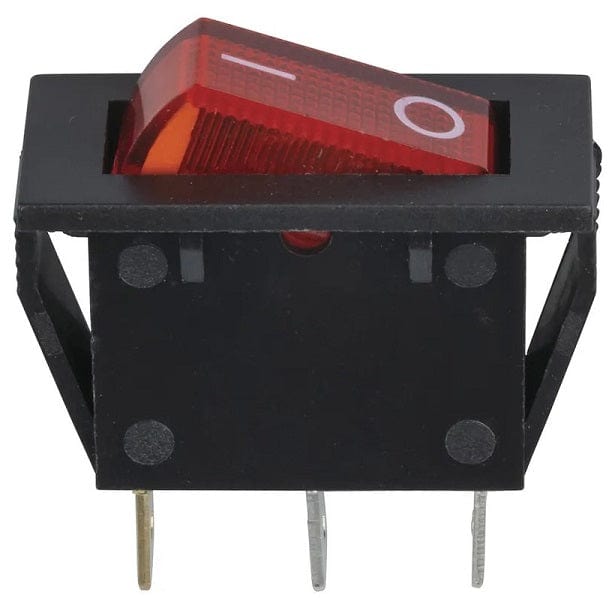

SPST 240V 15A rocker switches. Spade lug connectors with QC fittings.
Black body with illuminated actuator.
Specifications:
AC current rating : 15A
AC Voltage rating : 240V
Nominal Voltage : 250V, 250V
Type : Neon
Illumination Colour : Red
Connection : Spade Terminals
Length : 33.8mm
Width : 13.8mm
Height : 19.9mm
Switch Type : Rocker
Pole Throw Type : SPST
Poles / Contacts : 1 pole
Throws / Positions : 1pos
Switch Function : Locking On/Off
Switch Connection : Spade Terminals
Switch Colour Coded : Red
Cycle Life : 10000 cycles
Contact Resistance : 50mΩ
Insulation Resistance : 100Ω
Dielectric Strength : 1000V
Mechanism Material : Plastic
